Adding a site

From Senfi Docs
Jump to: navigation, search

Pre-requisites

  • 3D model with BBL information for Bespoke type
  • BBL information for User Drawn type
  • 2D floorplan

Please read this page to be familiar with the concepts related to site.

Add New Site with User Drawn Model

  1. Login to the CMS
  2. Go to the Site tab
  3. Click the + button
  4. Fill in the necessary fields (Eg. Site Name, Description, Country, Address, etc...)
  5. Choose User Drawn model type
  6. Add BBL information under Building, Block & Level section
    • Rename Building (optional)
    1. Click Edit button beside Building Name
    2. Rename Building
    3. Click SAVE
    • Edit Block (Optional)
    1. Click Edit button beside Block Name
    2. Rename Block
    3. Update Ground Floor Position (Optional)
      • The position of the block's ground level base
      • Default value is 0
    4. Click SAVE
    • Add Levels
    1. You can add individual level or add multiple levels
      • Add individual Level
      1. Click + button beside Block Name to add new level under that block
      2. Choose the level type
        • Below Ground: basement level
        • Above Ground
      3. Add Level name
      4. Add Height
      5. Click SAVE
      • Add multiple Levels
      1. Click + button beside Block Name to add new levels under that block
      2. Choose the level type
        • Below Ground: basement level
        • Above Ground
      3. Add No.of Levels (must be greater than 1)
      4. Leave Level name blank (level names can be rename after added)
      5. Add Height (All of the levels are using the same height)
      6. Click SAVE
  7. Navigate to the building location in map (Can use search feature) under DRAW FOOTPRINT
  8. Click the EDIT button to enter edit mode
  9. Trace building outline by clicking on the map
  10. Click the STOP EDITING button to confirm the outline
  11. Click PREVIEW tab to preview the 3D building
  12. Click SET DEFAULT VIEW button to set the initial view in dashboard (optional)
  13. Add 2D floorplan for each levels
    1. Click floorplan icon button beside edit icon button
    2. Select 2D floorplan image file

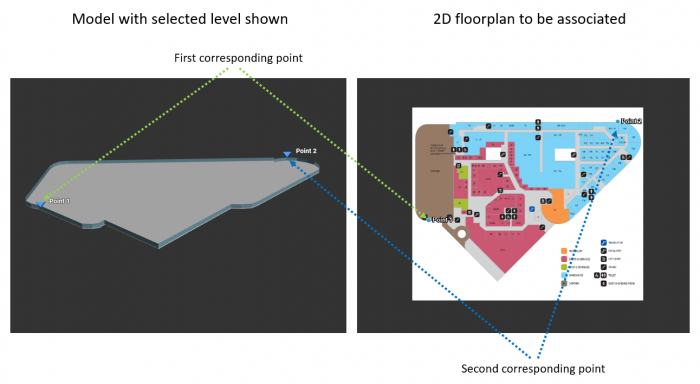

    3. Add 3D & 2D reference points
      Add 3D & 2D reference points
    4. Click SAVE to save the floorplan
  14. Click SAVE

Add New Site with Bespoke Model

  1. Login to the CMS
  2. Go to the Site tab
  3. Click the + button
  4. Fill in the necessary fields (Eg. Site Name, Description, Country, Address, etc...)
  5. Choose Bespoke model type
  6. Select 3D building model file (zip file)
  7. Click SET DEFAULT VIEW button to set the initial view in dashboard
  8. Add 2D floorplan for each levels
    1. Click floorplan icon button beside edit icon button
    2. Select 2D floorplan image file (click Choose File)
    3. Add 3D & 2D reference points
      Add 3D & 2D reference points
    4. Click SAVE to save the floorplan
  9. Click SAVE
