As pointed out in general concepts, a site is a place where sensors are located. Every site has an assigned ID (site_id) that is used when integrating with Senfi.

Building, Block, Level

A site usually contain buildings, which may be composed of different building blocks. Each building block is in turned made up of levels. Hence a site in Senfi is organized into: building > block > level, or BBL in short.

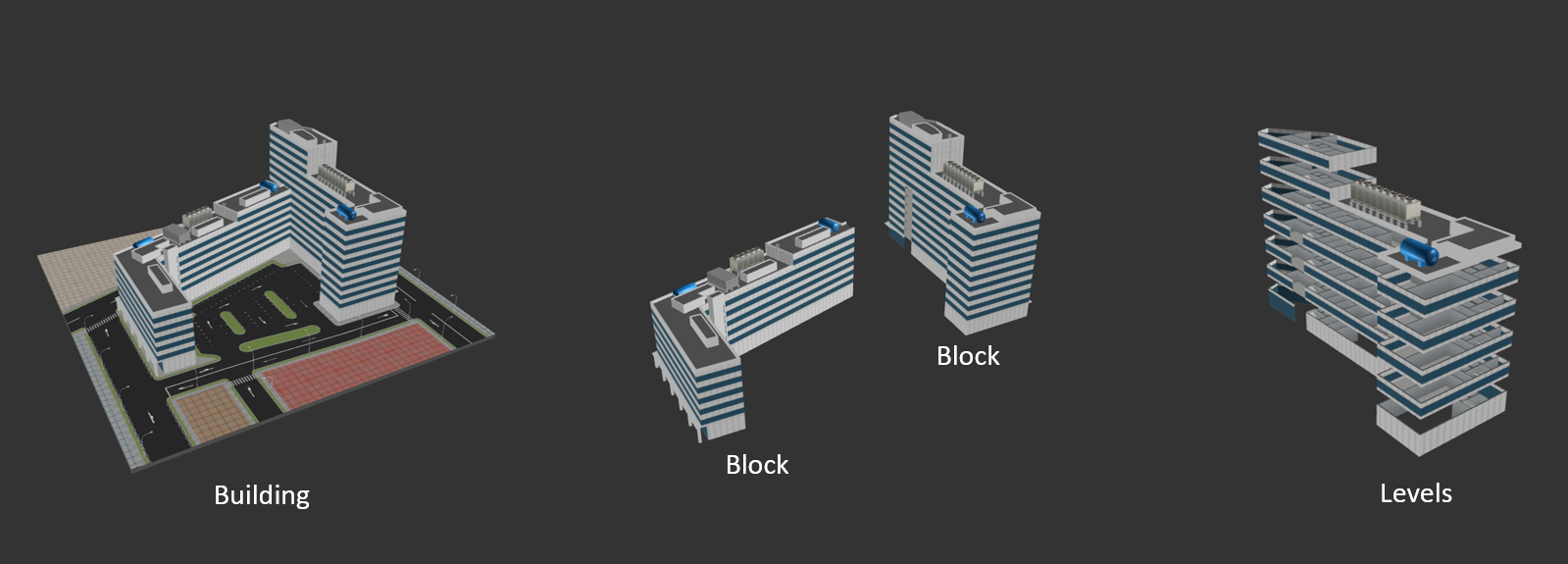

Building, Block, Level organization

Model Types

There are 2 types of models that are supported in Senfi.

  1. Bespoke model
  2. User-drawn model

Bespoke Model

A bespoke model is one which is prepared in a 3D modelling software like 3DS Max. Building/block/level information is already present in a bespoke model and these cannot be changed in the CMS.

Sample building modelled using 3D software

User-drawn Model

A user-drawn model is one which is drawn by tracing on a map. Currently, you can only draw one outline in the user-drawn model. This will be used as the building footprint. You can specify the number of floors in this building and the system will generate a building model for you. You can modify the building, block and level of a user-drawn model.

Sample building generated from building outline

Floorplan Calibration

It is strongly encouraged to have a floorplan associated with each level of a building/block. This makes it easy to locate things both in 3D as well as in 2D. Associating a floorplan with a level requires calibration. This process involves selecting a few corresponding points in the 3D building and the floorplan. This only needs to be done once when adding a floorplan, or when there are changes to the floorplan or 3D model.

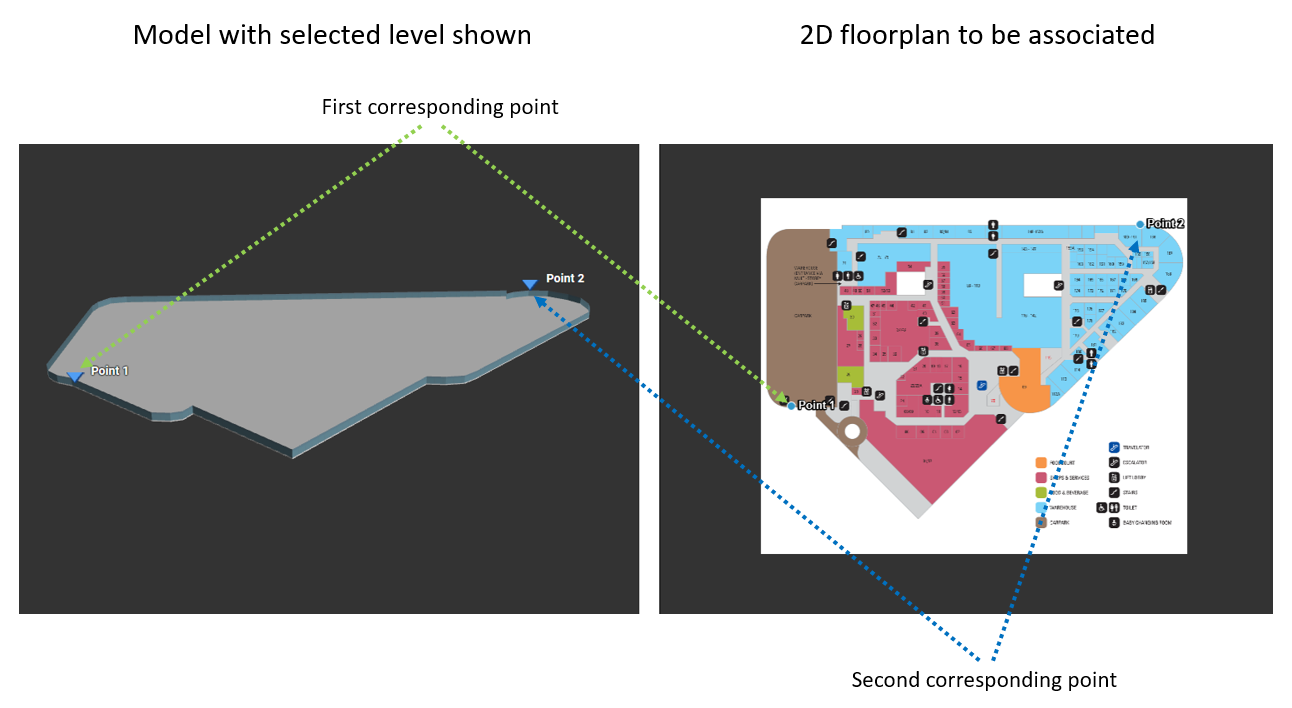

Calibration Process
