View Alarms

Once alarms have been created in the CMS, they can subsequently be viewed in the Digital Twin when triggered.

This section provides tutorials on how to:

• View Alarms
• Focus on a single alarm
• View Alarm Activity Log
• Display related assets of an alarm
• Set status and flags of an alarm
• Search for alarms
• Filter alarms
• Show/Hide dismissed alarms

View Alarms

"ALARM" tab to view all alarms

1. Select Alarm dropdown on the "ALARM" tab (top left corner of the 3D Model).
   • A red tab signifies presence of unacknowledged alarms. The number on the tab represents the number of unacknowledged alarms.

Focus on a Single Alarm

1. View Alarms.
2. Select Focus beside the alarm you want to focus on.


   Focus on 'Chiller Equipment Malfunctioned' alarm
   • You will be redirected to the 3D Model where the alarm's related assets are focused on.
   • The alarm information will also be displayed.

Display Related Assets

There are two ways to display an alarm's related assets:

• Method 1:

1. View Alarms.
2. Select Info dropdown beside the alarm you want to view.


   Display related assets of alarm
   • The alarm's related assets will be shown in the first panel.

• Method 2: See Focus on a Single Alarm.

Tip: Navigate to a related asset by selecting Go beside the relevant asset (Method 1) or selecting the asset displayed on the 3D Model (Method 2).

View Alarm Activity Log

There are two ways to view an alarm's activity log:

• Method 1:

1. View Alarms.
2. Select Info dropdown beside the alarm you want to view.


   Display alarm's activity log
   • The alarm's activity log will be shown in the second panel.

• Method 2:

1. Focus on a Single Alarm.
2. Select Info dropdown beside the alarm's last recorded activity.

Set Status and Flags

There are two ways to set the status and/or flags of an alarm:

• Method 1:

1. View Alarms.
2. Choose a status (Acknowledged, Unacknowledged, Dismissed) from the Alarm Status dropdown list under the "Status" column.
3. Set the flag by modifying the value under the "Flag" column.

• Method 2:

1. Focus on a Single Alarm.
2. Choose a status (Acknowledged, Unacknowledged, Dismissed) from the Alarm Status dropdown list.
3. Set the flag by modifying the value of the "Flag".

Search for Alarms

1. View Alarms.
2. Search for alarms using the Search bar (top of screen).

Filter Alarms

The Digital Twin currently supports filtering of alarms by time period. To do so:

1. View Alarms.
2. Set time period using Time Period bar (top of screen).

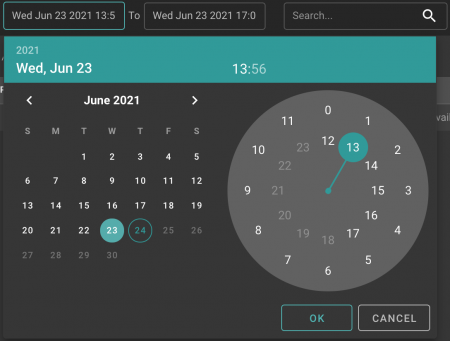

   Set Time Period for filtering alarms
3. Use the pop-up that appears when the field is selected to set the required date and time.
   • Set date by choosing from the calendar.
   • Set time by clicking on the clock.
4. Select "OK" once done.

Show/Hide Dismissed Alarms

1. View Alarms.
2. Check the "Show Dismissed" box (top of screen) to show dismissed alarms or uncheck to hide dismissed alarms.
