Navigate Site

3D Navigation of Site

Perspective View

Pan Model

  1. Move cursor to within the 3D Model Area.
  2. Click the mouse pad with two fingers.
  3. Move cursor to pan model in required direction.

Tilt Model

  1. Move cursor to within the 3D Model Area.
  2. Click the mouse pad with one finger.
  3. Move cursor to tilt model in required direction.

Zoom In/Out

  1. Move cursor to within the 3D Model Area.
  2. Place two fingers on the mouse pad.
  3. Scroll up/down to Zoom in/out.

Tool Bar

The tools available in the Tool Bar include:

Home View

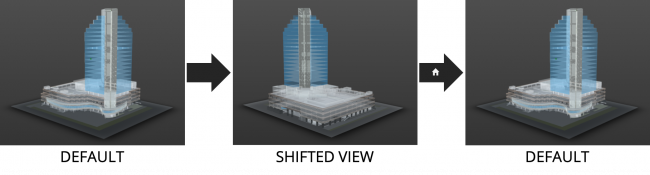

How Home View works

Selecting Home View.pngHome View shifts the 3D Model back to its default position.

Fit To View

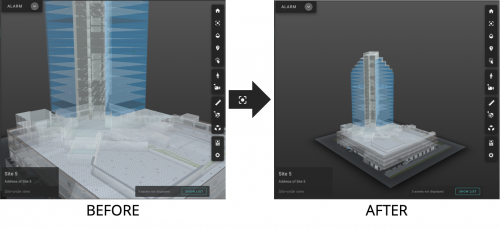

How Fit To View works

Selecting Fit To View.pngFit To View fits the entire 3D Model within the 3D Model Area.

Toggle Model Transparency

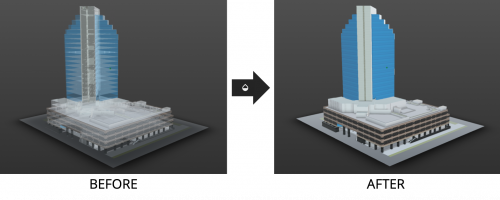

How Toggle Model Transparency works

Selecting Model Transparency.pngToggle Model Transparency changes the transparency of the 3D Model.

Toggle Asset Status

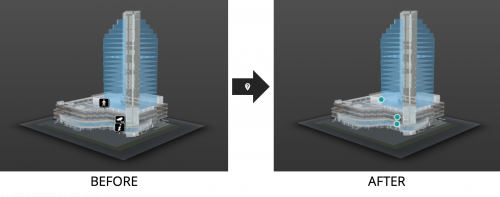

How Toggle Asset Status works

Selecting Asset Status.pngToggle Asset Status changes the how assets are represented on the 3D Model.

Toggle Select Model

Selecting Select Model.pngToggle Select Model allows you to select individual pieces on the 3D Model.

First Person

Selecting First Person.pngFirst Person changes the 3D Model navigation mode to First Person.

Instructions on how to navigate in first person

When selected, a pop-up detailing how to navigate in first person will appear.

Camera Interactions

Selecting Camera Interaction.pngCamera Interactions gives rise to 3 additional options:

  • Fit To View.pngFit To View
  • Focal Length.pngFocal Length: Change the Focal Length of the 3D Model.
  1. Move cursor to within the 3D Model Area.
  2. Click the mouse pad with one finger.
  3. Move cursor to change focal length as desired.
  • Roll.png Roll: Roll the 3D Model around.
  1. Move cursor to within the 3D Model Area.
  2. Click the mouse pad with one finger.
  3. Move cursor to roll model.

Measure

Selecting Measure.pngMeasure gives rise to 5 additional options:

  • Distance.pngDistance: Measure the distance between two points on the 3D Model.
  1. Select two points on the 3D Model.
  • Angle.pngAngle: Calculate the angle between two points.
  1. Select two points on the 3D Model.
    • The X, Y, Z distance between the two points will be displayed.
  • Calibrate.pngCalibrate: Adjust the readings of the model measurement tool.
  1. Select two points on the 3D Model.
  2. Define the size that it represents.
    • Change the "Unit Type" by choosing from the Unit type dropdown list.
  • Delete Measurement.pngDelete: Delete a measurement from the model.
  1. Select the measurement.
  2. Select Delete Measurement.pngDelete.
  • Measurement Settings.pngMeasure Settings:
    • Change the "Unit Type" of measurements by choosing from the Unit type dropdown list.
    • Change the "Precision" of measurements by choosing from the Precision dropdown list.
    • Change preference for Isolate Measurement (show only the measurements on the 3D Model):
      • Isolate Measurement.pngEnable Isolate Measurement
      • Not Isolate Measurement.pngDisable Isolate Measurement
    • Change preference for Free Measure (measurements outside of the 3D Model is allowed):
      • Enable Free Measure.pngEnable Free Measure
      • Disable Free Measure.pngDisable Free Measure

Section Analysis

Selecting Section Analysis.pngSection Analysis gives rise to 4 additional options:

  • Add x plane.pngAdd X Plane: Add a plane along the model's X-Axis.

Explode Model

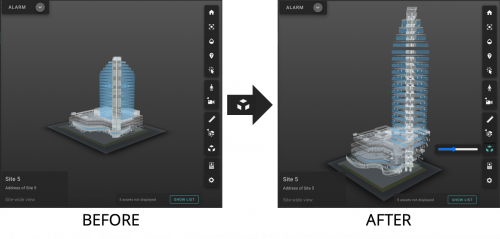

How Explode Model works

Selecting Explode.pngExplode Model takes the 3D Model apart.

  • Sliding the scroll bar to the right moves individual pieces further from each other.

Properties

Selecting Properties.pngProperties shows the name of a selected piece on the 3D Model.

  • If no piece is selected, Max Scene is shown.

Settings

Selecting Settings.pngSettings allows you to change the following settings:

  • Configuration Settings
  • Navigation Settings
  • Appearance Settings
  • Environment Settings
