Exporting Senfi Assets to Brick Schema

Assets in Senfi can be exported into Brick schema. When exporting, only assets with classes with Brick Equipment Class will be exported. Similarly for measurement's metrics, only metrics with Brick Point Class will be exported.

The following happens:

1. Senfi asset with a class with brick equipment class -> Will be exported as a brick equipment
2. The asset class's measurement -> Each of its metrics with brick point class will be exported as a brick point. The asset's "metric to brick point name" data will be used as the point name if available.

How to Export Senfi Asset into Brick Schema

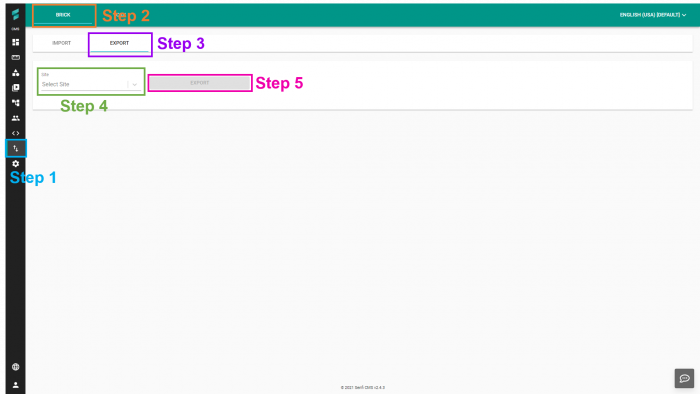

Steps 1 to 5 to export Senfi assets into Brick Schema

1. Go to "Import" tab
2. Select "BRICK"
3. Select "EXPORT" tab
4. Select the "Site" which to be exported.
5. Click "EXPORT"


   Steps 6 export Senfi assets into Brick Schema
6. Once export is completed, click on "Download" to download the .ttl file.
