Lift

Lift represents a physical lift in the real world. Lift is a specialized sensor in Senfi and may contain one or more measurements.

lsid tag must be created in measurement and marked as required tag.

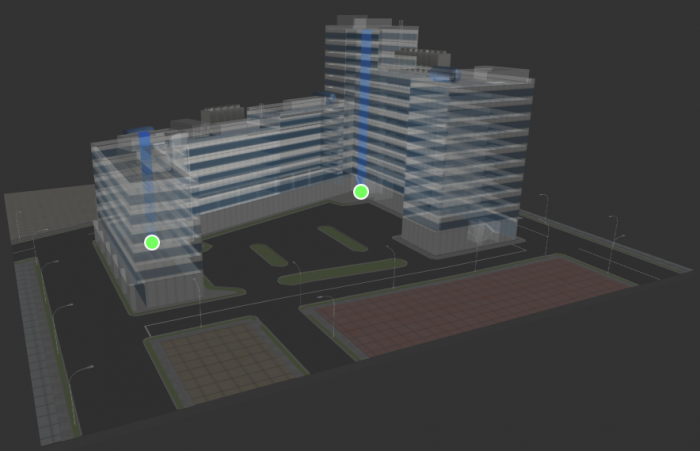

Lift in 3D model represents by lift shaft (blue color box) and lift car (green dot)

Lobby represents the lift lobby in the real world. Lobby may contain one or more lifts.

Stops are levels that the lift can travel. Stops starts from 1 and begins from the lowest to the highest serving level.

For example: Lift A in below image is serving from level 2 of Blk A, so stop 1 of the Lift A is Level 2.

Lifts are associated with lobby and a single lift's stops may be located throughout one or more blocks of the same building.

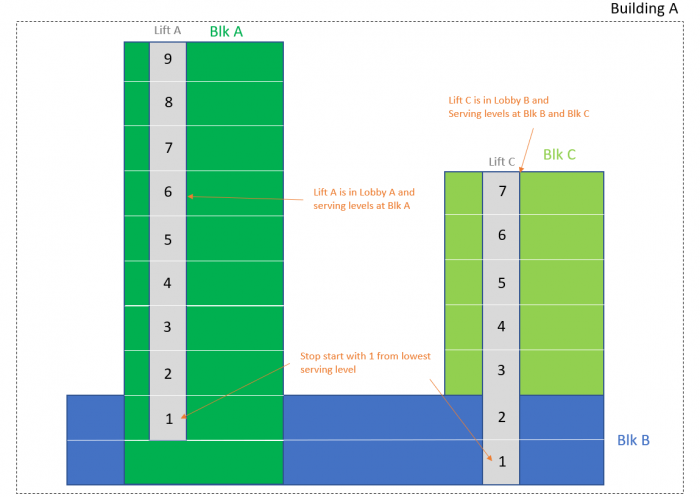

For example: Lift A in below image is serving levels within Blk A but Lift C is serving from level 1 of Blk B to level 5 of blk C.

Lift relation with BBL
